SSJ-TDLA SERIES | TROMBONE EDITION

High-Mass Engineering • Artisan Hand-Engraving

The SSJ-TDLA is engineered for the professional trombonist who demands a massive, resonant sound and incredible tonal stability. This model features a high-mass body architecture that provides a rich, dark core and minimizes vibration loss for superior projection. Every mouthpiece is precision CNC (Computer Numerical Control) machined to guarantee identical internal physics, while the custom hand-engraving ensures your mouthpiece is a unique «1-of-1» masterpiece.

📐 TECHNICAL SPECIFICATIONS

• External Diameter: 41mm.
• Internal Cup Diameter: 20mm.
• Rim Width: 8mm.
• Shank: Standard Large Shank Taper for a secure, airtight fit in large-bore trombones and euphoniums.
• Manufacturing Process: Precision CNC-milled for 100% consistent performance and reliability.
• Material: Premium Silver-Plated Brass.

🏆 PERFORMANCE CONFIGURATIONS

The SSJ-TDLA Trombone series is available in two distinct internal designs:

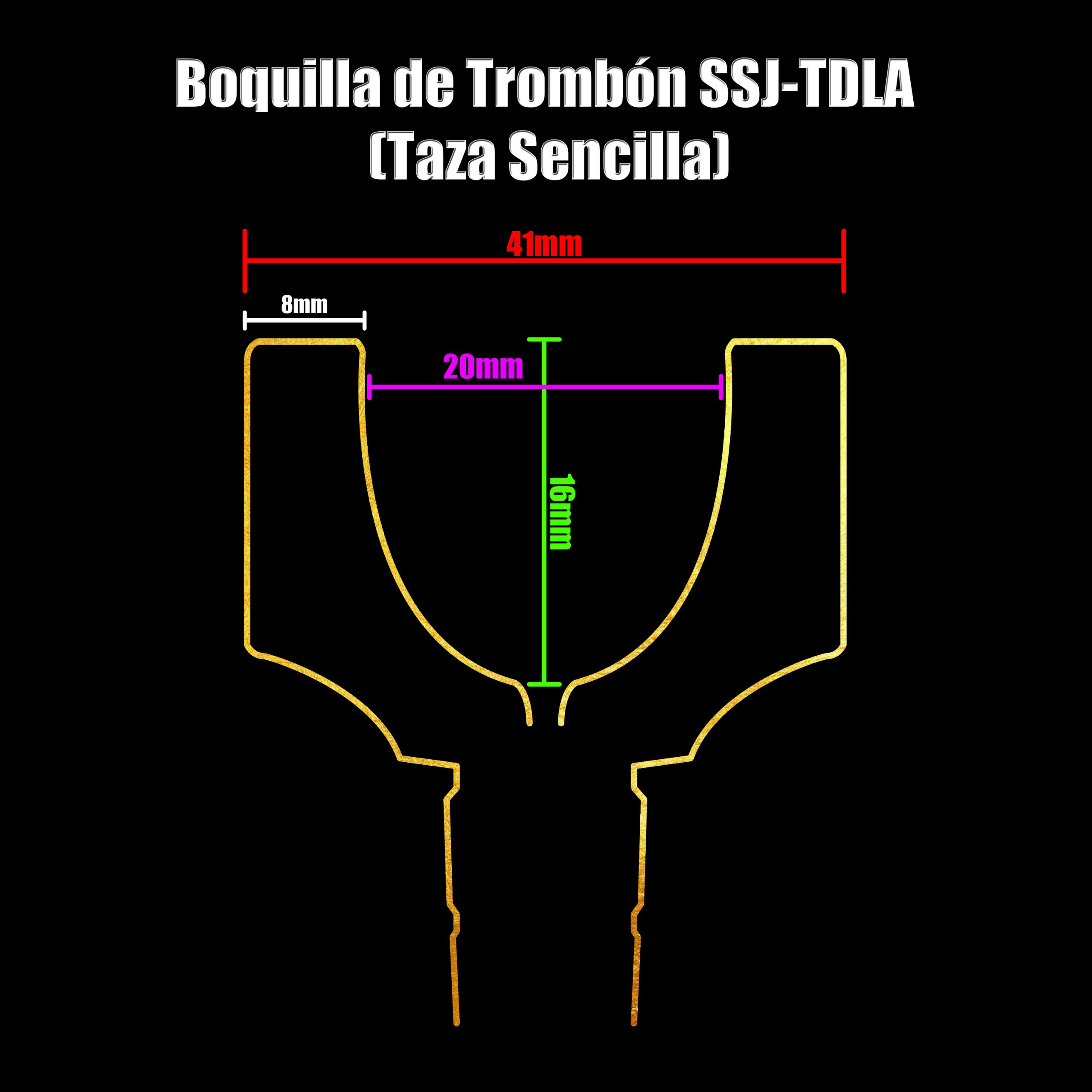

1. Taza Sencilla (Single Cup)

• Cup Depth: 16mm.
• Characteristics: Optimized for a powerful, centered orchestral sound with a smooth, dark response.

2. Doble Taza (Double Cup)

• Cup Depth: 14mm.
• Primary Bowl Depth: 10mm.
• Characteristics: Features a secondary compression chamber for explosive projection and enhanced high-register note slotting.

✨ ARTISAN HIGHLIGHTS

• Hand-Finished Art: Every mouthpiece features deep-relief floral and scrollwork engravings guided by a human hand.
• Artisan Variation: While the internal specs are CNC-identical, the hand-engraved exterior makes every piece a unique work of art.
• Smooth Response: High-polish silver plating ensures a comfortable, professional feel on the embouchure.
